1968-82 Arrow SUSPENSION - FRONT & REAR Arrow Front Suspension: Steering Rack

Front Suspension: Steering Rack

Diagrams:


1968 Steering Damper Diagram Thumbnail
1968 Steering Damper
(click to enlarge)

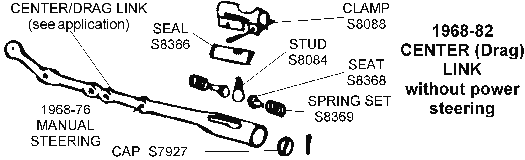

1968-82 Center Drag Link Diagram Thumbnail
1968-82 Center Drag Link
(click to enlarge)

Steering Linkage Diagram Thumbnail
Steering Linkage
(click to enlarge)


 S836068-82BOLT - tie rod end clamp "TR" headmark1.95
S8312S831268-82BOLT KIT - tie rod end clamp "TR" headmark w/crimp nuts, (8 pc.)18.45
 S936168BOLT & NUT KIT - steering damper, (7 pc.)5.85
S9359S935968BOLT PLATE & NUT KIT - steering damper bracket16.49
S7007S700768-82BOOT - idler arm12.90
A8053A805368-82BOOT/GREASE SEAL - dust, tie rod, (included w/new tie rod ends)3.95
A8059A805968-82BOOT/GREASE SEAL SET - dust, tie rods, polyurethane, (2 pc.)8.00
S9358S935868BRACKET - steering damper, on frame36.29
S9360S936068BRACKET - steering damper, on relay rod36.29
S7927S792768-76CAP - steering relay rod, w/o PS10.45
 S939568CENTER/DRAG LINK - w/o PS, small diameter rod, (recon.)224.95
 S808269-82CENTER/DRAG LINK - w/o PS, large diameter rod, (recon.)214.95
 B800068CENTER/DRAG LINK - w/ PS, small diameter rod, (recon.)224.95
B8083B808369-82CENTER/DRAG LINK - w/power steering224.95
S8078S807868-82CLAMP - tie rod tube4.75
S8088S808868-76CLAMP - center link ball stud seal, w/o PS13.95
 S792868-76COTTER PIN - manual steering relay rod cap1.00
S8080S808068DAMPER - steering, (for Corvettes w/o power steering)149.95
K0176K017668-76FITTING - grease, manual steering relay rod1.00
S8044S804468-82IDLER ARM - heavy duty63.65
A8066A806668-82NUT - idler arm to steering rack, castle/slotted type1.75
S8137S813768-82NUT - tie rod end, castle type, slotted1.65
B6604B660468-82PITMAN (BOX) ARM - w/power steering, casting #374138361.95
 S808968-82PITMAN (BOX) ARM - w/o power steering, casting #382945152.95
B6676B667668-82PLUG SET - steering knuckle holes, (2 pc.)11.30
S8057S805768-76REBUILD KIT - steering relay rod, (includes S8084, S8086 & S8088)124.20
S8086S808668-76SEAL - center link ball stud seal, w/o PS25.62
S8368S836868-76SEAT - center link (relay rod) w/o PS29.69
S8369S836968-76SPRING SET - center link (relay rod) w/o PS, (pr)14.30
S8084S808468-76STUD - center link ball stud, w/o PS36.85
S8072S807268-82TIE ROD END - LH, (2 req.)(ea.)32.50
S8074S807468-82TIE ROD END - RH, (2 req.)(ea.)34.50
S8076S807668-82TUBE - tie rod, includes clamps44.95
