1968-82 Arrow TOP ASSEMBLIES & RELATED Arrow Convertible / Soft Top & Hardware

Convertible / Soft Top & Hardware

Diagrams:

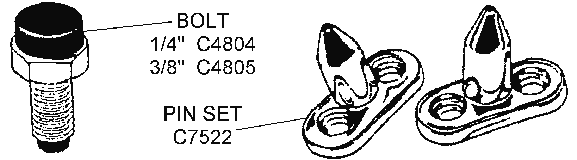

Bolt and Pin Set Diagram Thumbnail
Bolt and Pin Set
(click to enlarge)

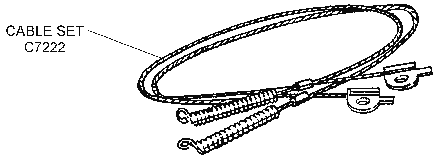

Cable Set Diagram Thumbnail
Cable Set
(click to enlarge)


C7591C759168-75BOLT - convertible deck lid, pivot type15.85
 C480468-75BOLT - soft top front latch bolt w/Delrin rubber tip 1/4" OD size head9.15
C4805C480568-75BOLT - soft top front latch bolt w/Delrin rubber tip 3/8" OD size head8.95
 C7513E68BRACKET - convertible rear bow lock pin, small diameter pin55.85
C7513C751369-75BRACKET - convertible rear bow lock pin, large diameter pin62.95
C6442C644268-75BRACKET - interior mirror and convertible striker plate on windshield frame, satellite finish, convertible46.85
B4804B480468BUSHING SET - front guide pin, (inserts in strikers)(pr)5.95
 C482469-75BUSHING SET - guide pin receiver, on windshield frame, (pr)5.25
C7222C722268-75CABLE SET - convertible top, side, (pr)47.85
A5694A569468-75CAP KIT - rear window trim bead end, stainless steel, 2 caps/screws23.95
 C755068-75CD - convertible top installation84.95
 C755368-75CD - convertible top installation, rental, ($35 deposit refundable if returned within 2 weeks)69.95
 C759568-75CONVERTIBLE TOP FRAME ASSEMBLY - used, original1895.00
A4054A405468-75GASKET SET - hard top anchor nut5.15
C7561C756168-75HARDWARE KIT - convertible frame rebuild52.95
C7574C757468-75HARDWARE KIT - convertible top weatherstrip installation, 50pc20.25
 C759968-75HEADER BOW - front, convertible top474.95
C7505C750568-75HOLD IN CORD - rear bow w/strip9.25
C7525C752568-75LATCH - convertible rear, on deck lid, LH92.85
C7526C752668-75LATCH - convertible rear, on deck lid, RH92.65
 C752768-75LATCH - convertible, LH & center, (on top)82.45
C7528C752868-75LEVER - rear bow lock, convertible25.75
 C750368-75PAD SET - convertible, cushions, (pr)47.85
C7508C750868-75PANEL - convertible, inside header trim panel, plastic124.65
C7562C756268-75PILLOW - conv., rear window in down position, prevents scratching23.10
C7522C752268-75PIN SET - convertible front guide, (pr)19.85
C7519C751968EPIN/LOCK - rear bow, (2 req.)(ea)21.10
C7518C751868-72PIN/LOCK - rear convertible guide, (68 repl.)(2 req.)(ea.)11.00
C4828C482868-75PLATE KIT/WEAR PLATES - on body, w/rivets, stainless steel22.00
 C755168-75RESTORATION SERVICE - front head bow, your rusted out header bow repaired, repainted w/new tack strip installed (some may not be repairable)299.95
C7552C755268-75RETAINER & SCREW KIT - convertible top strap20.25
 C475868-69RETAINER SET - rear quarter trim, (convertible)40.25
B5236B523668-75RETAINER/GUIDE - brass cable retainer w/screw & convertible front latch cable brass stop w/screw, (ea)5.95
C7590C759068-75ROD - rear bow lock release , center, w/nuts & clip21.10
C7538C753868-75SCREW SET - front guide pin, convertible6.10
C3445C344568-76SCREW SET - window header trim, (6 pc.)6.05
 C750468-75STRAP SET - convertible pull, (pr)19.20
 C750668-75TACK STRIP KIT - convertible, (replacement)64.95
C7570C757068-75TACK STRIP KIT - convertible, correct material89.95
A2379A237968-75TAG - warning, rear window, convertible top4.65
 C750068-75TOP KIT-original type-includes pads, straps, cords, top strip w/tips, undated682.95
