1968-82 Arrow EXHAUST SYSTEMS & HARDWARE Arrow Aluminized Exhaust Systems & Individual Pipes

Aluminized Exhaust Systems & Individual Pipes

Diagrams:


1975-82 Exhaust Systems Diagram Thumbnail
1975-82 Exhaust Systems
(click to enlarge)

Aluminized Exhaust Systems Diagram Thumbnail
Aluminized Exhaust Systems
(click to enlarge)

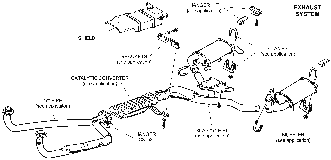

Exhaust System Diagram Thumbnail
Exhaust System
(click to enlarge)


C3537C353768COMPLETE SYSTEM - 427, 4-speed, 2.5"612.50
C3215C321568COMPLETE SYSTEM - 427, 4-speed 2.5" welded579.95
C3217C321768COMPLETE SYSTEM - 427, auto, 2.5" welded579.95
C3543C354368-72COMPLETE SYSTEM - 327/350, 4-speed, sp. hi-perf, 2" to 2.5"570.00
 C353668-72COMPLETE SYSTEM - 327/350, hi-perf, auto, 2" to 2.5"570.00
C3225C322568-72COMPLETE SYSTEM - 327/350, 4-speed, hi-perf, 2" to 2.5" welded570.00
C3327C332768-72COMPLETE SYSTEM - 327/350, auto, hi-perf, 2" to 2.5" welded589.95
 C354169COMPLETE SYSTEM - 427, 4-speed, 2" to 2.5"567.95
 C354269COMPLETE SYSTEM - 427, auto, 2" to 2.5"567.95
 C368669COMPLETE SYSTEM - 427, 4-speed, 2" to 2.5" welded612.50
 C368769COMPLETE SYSTEM - 427, auto, 2" to 2.5" welded589.95
C3539C353969-72COMPLETE SYSTEM - 350, 4-speed, 2"587.50
 C354069-72COMPLETE SYSTEM - 350, auto, 2"382.95
C3221C322169-72COMPLETE SYSTEM - 350, 4-speed, 2" welded421.95
C3544C354470-72COMPLETE SYSTEM - 454, 4-speed, 2.5"612.50
C3545C354570-72COMPLETE SYSTEM - 454, auto, 2.5"567.95
C3229C322970-72COMPLETE SYSTEM - 454, 4-speed, 2.5" welded589.95
C3231C323170-72COMPLETE SYSTEM - 454, auto, 2.5" welded589.95
C3130C313073COMPLETE SYSTEM - 350, auto, 2"382.95
 C229573COMPLETE SYSTEM - 350, auto, 2"524.95
C3132C313273COMPLETE SYSTEM - 350, auto, hi-perf, 2" to 2.5"403.95
C3129C312973COMPLETE SYSTEM - 350, 4-speed, 2" welded421.95
C3131C313173COMPLETE SYSTEM - 350, 4-speed, hi-perf, 2" to 2.5" welded539.95
 C313473COMPLETE SYSTEM - 454, auto, 2.5"567.95
 C363673COMPLETE SYSTEM - 454, auto, 2.5" welded589.95
 C313373COMPLETE SYSTEM -454, 4-speed, 2" to 2.5"320.00
 C348573COMPLETE SYSTEM - 350, auto, hi-perf, 2" to 2.5" welded359.00
C3633C363373COMPLETE SYSTEM - 454, 4-speed, 2.5" welded589.95
 C354674COMPLETE SYSTEM - 350, 4-speed, 2"525.00
 C354774COMPLETE SYSTEM - 350, auto, 2"525.00
 C354874COMPLETE SYSTEM - L82, 4-speed, 2" to 2.5"525.00
 C354974COMPLETE SYSTEM - L82, auto, 2" to 2.5"525.00
 C355074COMPLETE SYSTEM - 454, 4-speed, 2.5"425.00
 C355174COMPLETE SYSTEM - 454, auto, 2.5"547.95
 C310774COMPLETE SYSTEM - 454, 4-speed, 2.5"457.00
 C310974COMPLETE SYSTEM - 454, auto, 2.5"547.00
C3250C325074-79COMPLETE SYSTEM - 350, 4spd, 2" w/hideaway mufflers525.00
C3252C325274-79COMPLETE SYSTEM - 350, auto, 2" w/hideaway mufflers525.95
C3251C325174-79COMPLETE SYSTEM - L82, 4-speed, 2" to 2.5" w/hideaway mufflers525.00
C3249C324974-79COMPLETE SYSTEM - L82, auto, 2" to 2.5" w/hideaway mufflers547.95
C3110C311075COMPLETE SYSTEM - w/converter874.95
C3592C359276COMPLETE SYSTEM - w/A.I.R injector pump, original round mufflers484.05
 C366776COMPLETE SYSTEM - w/A.I.R. injector pump, hide away mufflers940.00
 C328676COMPLETE SYSTEM - w/o A.I.R. injector pump, round mufflers846.00
 C366676COMPLETE SYSTEM - w/o A.I.R. injector pump, hide-away mufflers844.00
C3272C327277-78COMPLETE SYSTEM - w/round mufflers (77 all, 78 L-42 only)484.05
C3675C367577-78COMPLETE SYSTEM - w/hide-away mufflers (77 all, 78 L-48 only)844.00
C3262C326278COMPLETE SYSTEM - L-82844.00
 C326179COMPLETE SYSTEM844.00
 C323780COMPLETE SYSTEM - 350599.00
 C323581COMPLETE SYSTEM808.00
C3233C323382COMPLETE SYSTEM W/HI FLOW CATALYTIC CONVERTER - all pipes are aluminized808.00
C3145C314575-76CONVERTER - hi-perf185.95
C3155C315577-81CONVERTER - hi-perf189.95
C3159C315982CONVERTER - hi-perf199.95
C3503C350368FRONT PIPE SET - 427, 4-speed, 2.5"159.95
 C350468FRONT PIPE SET - 427, auto, 2.5"144.85
 C350168-72FRONT PIPE SET - 327/350, 4-speed, sp. hi-perf, 2" to 2.5"119.75
C3502C350268-72FRONT PIPE SET - 327/350, auto, hi-perf, 2" to 2.5"159.95
 C350668-72FRONT PIPE SET - 327/350, auto, hi-perf, 2" to 2.5"144.85
C3507C350769FRONT PIPE SET - 427, 4-speed, 2" to 2.5"140.85
 C350869FRONT PIPE SET - 427, auto, 2" to 2.5"140.85
C3505C350569-72FRONT PIPE SET - 350, 4-speed, 2"118.25
 C350970-72FRONT PIPE SET - 454, auto, 2.5"159.95
C3634C363473FRONT PIPE SET - 454, 4-speed, auto144.85
C3597C359775-76FRONT "Y" PIPE 145.90
C3998C399877-79FRONT "Y" PIPE 144.00
C3561C356180FRONT "Y" PIPE - 350204.00
C3682C368280FRONT "Y" PIPE - 305180.00
C3619C361981FRONT "Y" PIPE204.00
C3558C355882FRONT "Y" PIPE 183.75
C3239C323975-76REAR "Y" PIPE167.75
C3241C324176-78REAR "Y" PIPE159.00
C3243C324380-81REAR "Y" PIPE179.95
C3245C324582REAR "Y" PIPE145.00
C3519C351968SECONDARY PIPE SET - 427, 4-speed, 2.5"119.95
C3521C352168SECONDARY PIPE SET - 427, auto, 2.5"98.40
 C471568-72SECONDARY PIPE SET - 327/350, 4-speed, sp. hi-perf, 2" to 2.5"112.00
C6569C656969SECONDARY PIPE SET - 427, 4-speed, 2" to 2.5"98.40
C6538C653869SECONDARY PIPE SET - 427, auto, 2" to 2.5"98.40
C3522C352269-72SECONDARY PIPE SET - 350, 4-speed, 2"98.40
C3523C352369-72SECONDARY PIPE SET - 350, auto, 2"91.35
