1953-62 Arrow GRILLE & GRILLE AREA

GRILLE & GRILLE AREA

Diagrams:

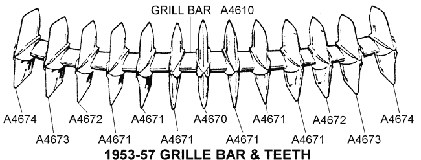

1953-57 Grill Bar & Teeth Diagram Thumbnail
1953-57 Grill Bar & Teeth
(click to enlarge)

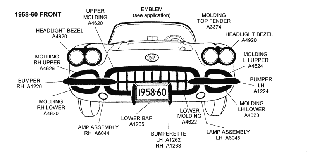

1958-60 Front Diagram Thumbnail
1958-60 Front
(click to enlarge)

1958-60 Grill Area Diagram Thumbnail
1958-60 Grill Area
(click to enlarge)

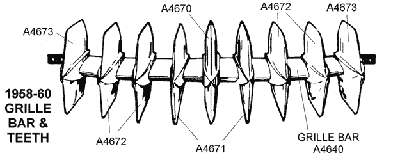

1958-60 Grill Bar & Teeth Diagram Thumbnail
1958-60 Grill Bar & Teeth
(click to enlarge)

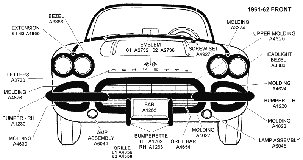

1961-62 Front Diagram Thumbnail
1961-62 Front
(click to enlarge)

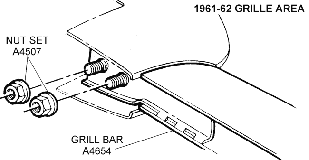

1961-62 Grill Area Diagram Thumbnail
1961-62 Grill Area
(click to enlarge)

1961-62 Grille Area Diagram Thumbnail
1961-62 Grille Area
(click to enlarge)

Grill Tooth and Brackets Diagram Thumbnail
Grill Tooth and Brackets
(click to enlarge)


A4616A461653-60BACKPLATE - grille teeth2.25
 A466158-62BOLT SET - grille panel support rod, "TR" headmark (pr)6.75
A4644A464458-60BRACKET SET - grille bar end mounting (pr)24.50
 A461253-57BRACKET SET - grille mounting (5 pc)44.50
 A090458-62BRACKET SET - nose support rods, w/rivets (pr)14.95
 A065653-62CLIP & SCREW SET - wire harness/cables to inner fender/short (1-1/4" OL) (6 req) (ea)2.00
 A065753-62CLIP & SCREW SET - wire harness/cables to inner fender/long (1-5/8"OL) (14 req) (ea)2.00
A4610A461053-57GRILLE - bar205.00
 A464058-60GRILLE - bar157.95
A4654A465461-62GRILLE - bar127.00
 A465661GRILLE - clear anodized aluminum925.00
A4658A465862GRILLE - black anodized925.00
A4604A460453-57GRILLE ASSEMBLY - (w/bar, teeth, studs, back plates, bar mounting brackets) complete722.95
A4634A463458-60GRILLE ASSEMBLY - complete (w/bar, teeth, studs, back plates, Bar mounting brackets)503.95
A4602A460253-57MOLDING - grille, oval / chrome plated / stamped brass1395.00
A4622A462258-62MOLDING - grille, lower center/main, chrome **AVAILBLE MARCH IST**699.95
A4620A462058-62MOLDING - grille, upper/main center, chrome, **AVAILBLE MARCH IST**699.95
A4628A462858-62MOLDING - lower outer, below bumper, LH  CALL
A4624A462458-62MOLDING - upper outer, above bumper, LH  CALL
A4626A462658-62MOLDING - upper outer, above bumper, RH  CALL
A4630A463058-62MOLDING - lower outer, below bumper, RH  CALL
A4632A463258-62MOLDING KIT - grille (6 pc, 2 main, 4 outer) w/mount kit  CALL
A4675A467558-62MOUNT KIT - grille moldings, nut & washer (84 pc)13.95
A4657A465753-57MOUNT KIT - grille oval, retainer plate set38.45
A4614A461453-57MOUNT KIT - grille teeth (13 backing plates, 26 studs)53.95
 A464258-60MOUNT KIT - grille teeth (9 backing plates, 18 studs)39.95
 A450558-60NUT SET - grille bar to bumper (8 pc)2.25
A4507A450761-62NUT SET - grille bar to bumper (4 pc)1.25
 A090058-62ROD SET - nose support (pr)24.95
A4660A466062SPACER SET - grille (8 pc)19.95
 A461853-60STUD - grille teeth (ea)1.50
A4611A461153-57STUD SET - grille oval molding15.75
A4650A465058-62STUD SET - grille moulding, 30 piece27.95
A4674A467453-57TOOTH - grille (ea)41.95
A4670A467053-60TOOTH - grille (ea)41.95
A4671A467153-60TOOTH - grille (ea)41.95
A4672A467253-60TOOTH - grille (ea)41.95
A4673A467353-60TOOTH - grille (ea)41.95
 A460653-57TOOTH KIT - grille, w/mount kit503.95
A4636A463658-60TOOTH KIT - grille, w/mount kit295.00
