1953-62 Arrow LOCKS & RELATED

LOCKS & RELATED

Diagrams:


Ignition Switch Lock & Key Diagram Thumbnail
Ignition Switch Lock & Key
(click to enlarge)

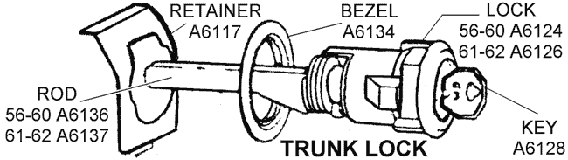

Trunk Lock Diagram Thumbnail
Trunk Lock
(click to enlarge)


A6132A613253-62BEZEL/ESCUTCHEON - door lock (2 req., ea)11.50
A6134A613453-62BEZEL/ESCUTCHEON - trunk lock42.50
A5846A584656-57CATCH/BRACKET - glove box lock, on body27.95
A6151A615156-59CYLINDER - ignition lock, correct38.95
A6152A615260-62CYLINDER - ignition lock, correct, (w/key)32.95
A6138A613856-59FACE - ignition lock cylinder14.60
A6140A614060-62FACE - ignition lock cylinder w/single hole15.15
A4024A402453-62GASKET SET - door and trunk locks3.95
A6129A612956-62KEY BLANK - glove box, original round type4.95
 A615556-62KEY BLANK - ignition/door/trunk, original hex type, Briggs & Stratton/GM, NOS10.95
A6128A612856-62KEY BLANK - ignition/door/trunk, original hex type, GM replacement.4.95
 A692156-62LEVER - door handle push button, LH14.00
A6922A692256-62LEVER SET - door handle push buttons LH/ RH (pr}32.00
A6120A612056-62LOCK - glove box, w/key 49.25
A6150A615056-59LOCK - ignition cylinder, w/key34.65
A6154A615460-62LOCK - ignition cylinder, w/key32.95
 A612553-55LOCK & KEY - trunk, w/o rod 42.50
A6124A612456-60LOCK & KEY - trunk, w/o rod45.35
 A612661-62LOCK & KEY - trunk, w/o rod37.50
 A611456-58LOCK SET - doors, with 2 keys & pawls, (pr)51.30
 A611659-62LOCK SET - doors with 2 keys & pawls, (pr)35.95
 A610153-55LOCK SET - ignition & trunk80.00
 A610856-60LOCK SET - ignition & doors72.95
 A610256-59LOCK SET - ignition, doors, trunk, & glove box cylinder124.95
 A611160LOCK SET - ignition, doors, trunk, & glove box cylinder124.95
 A610461-62LOCK SET - ignition, doors, trunk, & glove box cylinder124.95
 A610356-59LOCK SET - super kit157.95
 A611360LOCK SET - super kit157.95
 A610561-62LOCK SET - super kit157.95
A6122A612256-62NUT - glove box lock retainer10.50
A2116A211660-62NUT/BEZEL - ignition switch15.15
A2112A211256-59NUT/BEZEL - ignition switch, locking15.95
A6118A611856-62PAWL - door lock cylinder, tear drop shape8.79
A6130A613053-62RETAINER - door lock12.65
A6117A611753-62RETAINER - trunk lock15.95
A6100A610056-62RETAINER/CLIP - pawl, door lock2.00
A6923A692356-62ROD - door handle push button, w/pivot, LH15.75
A6924A692456-62ROD - door handle push button, w/pivot, RH15.75
A6106A610656-62ROD - door lock cylinder, down13.75
A6137A613753-55ROD - lock, trunk9.85
A6136A613656-60ROD - lock, trunk9.35
A6137A613761-62ROD - lock, trunk9.85
A6925A692556-62SPRING KIT - door handle lever rods4.40
