1953-62 Arrow GASKETS, SEAL SETS, & RELATED

GASKETS, SEAL SETS, & RELATED

Diagrams:


Body Gasket Sets Diagram Thumbnail
Body Gasket Sets
(click to enlarge)

Typical Gasket Kit Diagram Thumbnail
Typical Gasket Kit
(click to enlarge)

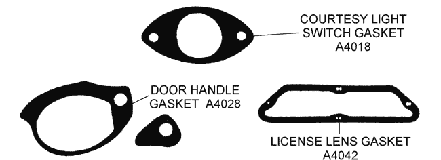

Various Gaskets Diagram Thumbnail
Various Gaskets
(click to enlarge)


A4075A407556-57BODY GASKET KIT - (29 pc)79.95
A4076A407658-60BODY GASKET KIT - (33 pc)84.95
A4077A407761-62BODY GASKET KIT - (33 pc)84.95
 A345858-62GASKET - FI air cleaner adapter to air meter5.85
A6098A609861-62GASKET - license light assembly to body8.25
A4042A404261-62GASKET - license light lens (white)11.65
A4012A401253-62GASKET - outside mirror2.35
A8197A819753-62GASKET - rear end drain plug2.20
A4002A400253-55GASKET - rear license Plexiglas cover16.95
A4040A404061-62GASKET - tail light lens, cork (ea)6.80
A4018A401853-62GASKET SET - courtesy light switches (pr)3.35
A4024A402453-62GASKET SET - door and trunk locks3.95
A4028A402856-62GASKET SET - door handles (4 pc)7.45
A4054A405456-62GASKET SET - hard top anchor nut (pr)5.15
A4918A491853-57GASKET SET - headlight bucket to body (pr)10.25
A4916A491656-57GASKET SET - headlight chrome ring/bezel (pr)9.45
A4032A403256-60GASKET SET - license light lens (pr)4.10
A4020A402053-62GASKET SET - parking lamp lens (pr)4.10
A4004A400453-57GASKET SET - parking lamps to body (pr)4.45
A4034A403458-62GASKET SET - parking lights to body (pr)4.10
A4056A405656-62GASKET SET - soft top latch on rear deck lid (pr)5.00
A4044A404461-62GASKET SET - tail light housing to body, gray (4 pc)9.95
A4010A401056-52GASKET SET - tail light lens (pr)8.65
A4038A403858-60GASKET SET - tail light lens, outer (pr)11.25
A4026A402656-60GASKET SET - tail light to body (pr)3.60
A4022A402253-62GASKET SET - windshield washer nozzles, pr1.95
A4008A400853-57GASKET SET - wiper arm chrome spacers (pr)3.75
A4036A403658-62GASKET SET - wiper arm chrome spacers (pr)2.75
A4708A470856-62GROMMET - firewall / heater hose thru firewall (2 req. 53-55) (1 req. 56-62)6.50
A0424A042458GROMMET - firewall / tach cable, F.I., (not included w/grommet kit)21.25
A4712A471256-62GROMMET - firewall, 4 holes9.70
A4714A471458-62GROMMET - firewall/windshield washer hoses, 2 holes7.65
A4713A471353-57GROMMET - headlight bucket wire harness9.95
A4048A404853-62GROMMET - one hole, 7/8"5.10
A4717A471753-55GROMMET - washer hose, 3 hole9.65
A4702A470256-57GROMMET SET - firewall & body (24 pc)75.75
A4704A470458-62GROMMET SET - firewall & body (contains A4708, A4709, A4048, A4712, A4714 & A4716)(25 pc)77.35
A4716A471658-62GROMMET SET - hood release cable (pr) (A4716 comes without a hole. Cable is pushed through it.)10.45
A0778A077853-55SEAL SET - windshield end frame (2pc)4.75
A4014A401458-62SEAL/GASKET - front or rear emblem4.50
A9291A929156-62SEAL/SHIM SET - windshield end frames (6 pc)10.50
