| | A3590 | 56-57 | BAFFLE/PANEL - in front of core support, fiberglass (PM) | 97.50 | |
| | A3514 | 58-62 | BAFFLE/PANEL - in front of core support, fiberglass, white, (PM) | 159.95 | |
 | A1959 | 53-60 | BOLT SET - fan blade w/"WB" headmark (4 pc) | 9.65 | |
 | A2043 | 56-62 | BOLT SET - fan shroud to core support, core support to inner skirt, w/"E" headmark, correct (8 pc) | 11.75 | |
 | A2088 | 58-62 | BOLT SET - lower fan shroud to frame (4 pc) | 6.95 | |
 | A2201 | 61-62 | BRACKET - core support, lower, (w/cups) | 70.00 | |
 | A0965 | 56-59 | BRACKET - lower radiator fiberglass baffle mount, in front of radiator | 73.35 | |
 | A0950 | 60 | BRACKET - on lower radiator fiberglass baffle A3514, in front of radiator. No bracket was used on the 1961/2 models. | 52.50 | |
| | A2016 | 53-54 | BRACKET - overflow tank mounting | 33.75 | |
 | A2017 | 60-61 | BRACKET SET W/BOLTS & SEALS - tank top radiator w/bolts and seals (pr) | 186.75 | |
 | A2024 | 61-62 | BRACKET/MOUNT - radiator top, w/cushion and retainer | 64.25 | |

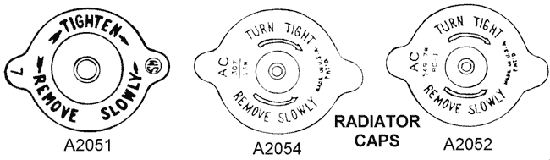

 | A2041 | 53-55 | CAP - radiator, 6 cylinder, RC2 (AC replacement) | 5.75 | |
 | A1999 | 53-54 | CAP - radiator, (correct) | 39.95 | |
 | A2051 | 55-60 | CAP - radiator, "SM" logo, (correct) | 39.95 | |
 | A2056 | 55-61 | CAP - radiator, 7 lb. (AC replacement) | 11.25 | |
 | A2052 | 58-61 | CAP - radiator, "549", 7#RC1, copper radiator, (correct) | 41.40 | |
| | A2058 | 60-62 | CAP - radiator, 15 lb. (AC replacement) | 13.95 | |
 | A2053 | 60-61E | CAP - radiator, w/top tank, aluminum, AC-362, (correct) | 46.75 | |
 | A2055 | 61E | CAP - radiator, aluminum, AC-RC306, 13lb, exc. top tank radiator (thru Feb.'61), (correct) | 42.00 | |
 | A2054 | 61L-62 | CAP - expansion tank/radiator, AC-RC307, 13lb., (after Feb '61), (correct) | 45.30 | |
 | A2050 | 62 | CLIP SET - radiator seal support retainer, 327-340/360hp hi perf only, 6pc | 29.25 | |
| | G9003 | 53-62 | COOLANT ADDITIVE - "water wetter" | 7.95 | |
 | A2014 | 53-57 | CORE SUPPORT - radiator | 329.95 | |
 | A2072 | 58-60 | CORE SUPPORT - radiator | 329.95 | |
| | A2022 | 61-62 | CORE SUPPORT - radiator | 352.95 | |
 | A2061 | 60-61 | CORE SUPPORT - radiator, all w/tank top radiator | 354.95 | |
 | A2047 | 61-62 | COUPLING FITTING - aluminum, drain cock extension to aluminum drain cock | 15.65 | |
 | A2074 | 61-62 | CUSHION - radiator mount, (3 req), (ea) | 2.65 | |
 | A2026 | 60-62 | DRAIN COCK - drain, all w/aluminum radiator, (correct) | 29.32 | |
| | A2069 | 53-62 | DRAIN COCK - drain, all w/copper radiator | 12.00 | |
 | A2084 | 56-60 | DRAIN COCK - drain, w/extension tube, brass radiator, (3 pc) | 15.25 | |
| | A2040 | 60-62 | DRAIN KIT - aluminum radiator, w/coupling, extension & pet cock | 44.25 | |
 | A2015 | 58-62 | EXTENSION - at core support w/fresh air inlet hole, (metal) RH | 76.65 | |
 | A2012 | 58-62 | EXTENSION - at core support w/fresh air inlet hole, (metal), LH | 76.65 | |
 | A2045 | 61-62 | EXTENSION/PIPE - drain pet cock, aluminum | 15.25 | |
| | A2018 | 60-61 | HOSE - radiator overflow all with tank top radiator | 7.75 | |
 | A2029 | 53-61 | ID PLATE - "Harrison" brass radiator (up to VIN #1700, 1961) (specify year & date), 1957 #3141674, 1958M-61 #3133689 | 49.95 | |
| | A2029S | 58E | ID PLATE - "Harrison" brass radiator , #3139588, SPECIAL CUSTOM MADE | 139.95 | |
 | A2346 | 62L | ID PLATE - "Harrison" radiator, second design, metal, (not date stamped) | 27.60 | |
 | A2344 | 60-62E | ID PLATE/METAL - early engine special equipment, stamped 61/62, aluminum Harrison radiator metal plate | 38.64 | |
 | A2070 | 53-62 | MOUNTING KIT - radiator support, lower, w/2 carriage bolts | 25.95 | |
 | A5198 | 56-62 | PLATE - air block-off on radiator support extension, LH, for all except high horse power F.I. cars | 22.35 | |
| | A2083 | 60-61E | PLUG - tank top radiator top, clear, w/"T418" marking, as original | 40.95 | |
 | A5124 | 58-62 | SCREEN KIT - fresh air inlet, in front core support area, w/screws (1 or 2 req.), (ea), & all on RH/all w/o hi-perf fuel inj. 58-62 on LH | 36.95 | |
 | A2048 | 56-59 | SCREW SET - fan shroud assembly, lower (18 pc) | 13.45 | |
 | A2068 | 60-62 | SCREW SET - fan shroud assembly, lower (5 pc) | 5.80 | |
 | A1992 | 60-62 | SCREW SET - radiator metal I.D. plate, (pr) | 2.75 | |
 | A2020 | 59-60 | SEAL - hood front , rubber | 29.95 | |
 | A2033 | 53-55 | SEAL - lower radiator | 59.95 | |
| | A2071 | 58-62 | SEAL KIT - core support, lower, w/base engine, (3 pc) | 12.95 | |
| | A2073 | 58-62 | SEAL KIT - core support, sides, 2x4/F.I, (pr) | 10.00 | |
| | A2031 | 60-61 | SEAL KIT - hi-performance. top tank radiator, (4 pc) | 19.25 | |
 | A2066 | 60-62 | SHROUD - fan, lower, LH | 55.65 | |
 | A2067 | 60-62 | SHROUD - fan, lower, RH | 55.65 | |
 | A1981 | 55 | SHROUD - fan, upper | 199.80 | |
 | A1982 | 56-57 | SHROUD - fan, upper | 199.80 | |
 | A2044 | 58-59 | SHROUD - fan, upper | 239.95 | |
 | A2064 | 60-62 | SHROUD - fan, upper | 239.95 | |
 | A2046 | 55-59 | SHROUD KIT - fan, lower, w/screws, (55 replacement), (3 pc) | 119.50 | |
| A2050 | 56-57 | SHROUD KIT - fan, LH, CENTER & RH lower, w/screw set, (4pc) | 29.25 | |
| | A2063 | 60-62 | SHROUD KIT - fan, upper, LH & RH lower, w/screw set, (3pc) | 310.95 | |
 | A1983 | 56-57 | SHROUD KIT - fan, w/screws - upper/lower | 289.95 | |
| | A2042 | 58-59 | SHROUD KIT - fan, w/screws, (A2044 & A2046), (4 pc) | 399.95 | | |
COOLING SYSTEM
