Diagrams:

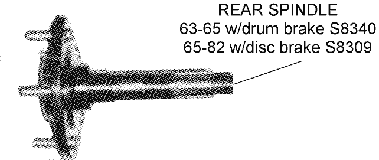

Rear Spindle
(click to enlarge)

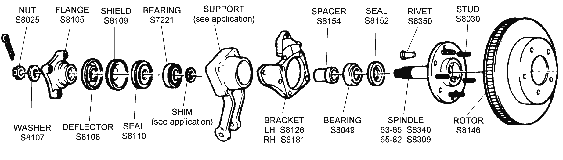

Rotor Assembly Diagram Thumbnail

Rotor Assembly
(click to enlarge)

Various Components Diagram Thumbnail

Various Components
(click to enlarge)

S7238	63-67	BEARING & RACE - rear, inner	38.25
S8049	63-67	BEARING & RACE - rear, outer	27.60
S8112	63-67	BEARING KIT - rear wheel, (incl. 1 each of: rear bearing & seal, rear outer bearing & seal	44.95
S8338	63-67	BEARING, SPACER & TOOL KIT - rear wheel bearing servicing	329.95
S8108	63-67	DEFLECTOR - dust, rear spindle flange	3.75
S7185	63	FLANGE - rear spindle, thin design, (recond.)	90.00
S8386	63-67	FLANGE - rear spindle, recond., (63 repl.)	65.00
S8025	63-67	NUT - castle type, rear spindle	5.20
S7937	63-67	NUT & WASHER KIT - rear parking brake flange, does both sides (16 pc.)	3.10
S8350	65-67	RIVET SET - rotor to hub, as from factory, (5 pc.)	5.25
S8146	65-67	ROTOR - rear	74.00
S8110	63-67	SEAL - rear wheel inner bearing	6.00
S8152	63-67	SEAL - rear wheel outer bearing	7.75
S8109	63-67	SHIELD - dust, rear inner wheel bearing	4.95
S7761	63-67	SHIM & SPACER KIT - rear wheel bearing, incl. 9 shims & 1 spacer	69.95
S8113	63-67	SHIM - rear wheel bearing, .097 thickness	7.95
S8154	63-67	SPACER - rear wheel bearing	17.65
S8340	63-65	SPINDLE - rear, w/drum brake	204.50
S8309	65-67	SPINDLE - rear	159.95
S8030	63-67	STUD - spindle, rear wheel retaining	2.60
S8165	65-67	STUD KIT - wheel stud, with "TR" marking, set of 5	10.25
S7186	63	SUPPORT - spindle, LH, w/extra small ear, w/o webbing, recond.		CALL
S7187	63	SUPPORT - spindle, RH, w/extra small ear, w/o webbing, recond.		CALL
S9377	63-67	SUPPORT - spindle, LH w/small lower shock support ears, recond. original (63 repl.)	199.95
S9378	63-67	SUPPORT - spindle, RH w/small lower shock support ears, recond. original (63 repl.)	199.95
S8077	63-67	SUPPORT - spindle, LH, recond. original w/large lower ears (63-67 repl.)	159.95
S8029	63-67	SUPPORT - spindle, RH, recond. original w/large lower ears (63-67 repl.)	159.95
S8107	63-67	WASHER - rear spindle	6.80
