1968-82 Arrow ENGINE ASSEMBLY & COMPONENTS: AIR CLEANERS, ALTERNATORS, BLOCKS, CARBURETORS, DISTRIBUTORS, FUEL PUMPS, HEADS, IGNITION SHIELDING, STARTERS, VALVE COVERS, WATER PUMPS & MORE Arrow Fuel System: Carburetors, Parts, Kits, Fuel Filter, Lines, Filters & Fuel Injection Arrow Fuel System: Carburetors - Holley / Original - Unrestored

Fuel System: Carburetors - Holley / Original - Unrestored

Diagrams:

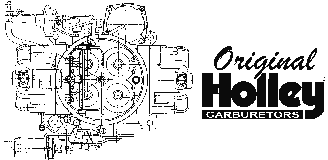

Original Holley Carburetor Diagram Thumbnail
Original Holley Carburetor
(click to enlarge)


C1547C154768CARBURETOR - #3659 3x2 end, CALL OR E MAIL ABOUT AVAILABLE DATES, (2 req.)(ea)425.00
C1556C155669CARBURETOR - #3659 3x2 end, CALL OR E MAIL ABOUT AVAILABLE DATES, (2req.)(ea)425.00
C1586C158668CARBURETOR - #4054 L88, CALL OR E MAIL ABOUT AVAILABLE DATES   CALL
 C158768CARBURETOR - #4055 3x2 stick, center, CALL OR E MAIL ABOUT AVAILABLE DATES, 495.00
 C158868CARBURETOR - #4056 3x2 auto, center, CALL OR E MAIL ABOUT AVAILABLE DATES, 595.00
 C158069CARBURETOR - #4055 3x2 stick, center, CALL OR E MAIL ABOUT AVAILABLE DATES, 495.00
 C158169CARBURETOR - #4056 3x2 auto, center, CALL OR E MAIL ABOUT AVAILABLE DATES, 695.00
C1589C158969CARBURETOR - #4296 L88, CALL OR E MAIL ABOUT AVAILABLE DATES,   CALL
 C159070CARBURETOR - #4489 350/LT1 stick, California, CALL OR E MAIL ABOUT AVAILABLE DATES, 695.00
 C159170CARBURETOR - #4555 350/LT1, CALL OR E MAIL ABOUT AVAILABLE DATES, 795.00
 C159271CARBURETOR - #4801 350/LT1, CALL OR E MAIL ABOUT AVAILABLE DATES,   CALL
 C159371CARBURETOR - #4802 LS6 auto, CALL OR E MAIL ABOUT AVAILABLE DATES,   CALL
 C159471CARBURETOR - #4803 LS6 stick, CALL OR E MAIL ABOUT AVAILABLE DATES,   CALL
C1595C159572CARBURETOR - #6239 350/LT1, CALL OR E MAIL ABOUT AVAILABLE DATES, SAMPLE SHOWN IS RESTORED / RESTORATIONS ARE AVAILABLE FOR AN ADDITIONAL FEE795.00
