1953-62 Arrow RADIO & RELATED

RADIO & RELATED

Diagrams:


1958-62 Voltage Regulator & Related Diagram Thumbnail
1958-62 Voltage Regulator & Related
(click to enlarge)

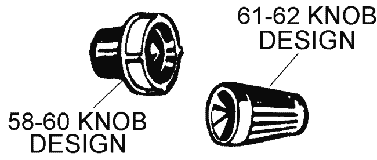

Differences in Knob Design Diagram Thumbnail
Differences in Knob Design
(click to enlarge)

Generator and Related Diagram Thumbnail
Generator and Related
(click to enlarge)

Radio and Speaker Area Diagram Thumbnail
Radio and Speaker Area
(click to enlarge)

Speaker Grill Diagram Thumbnail
Speaker Grill
(click to enlarge)


 A710653-57EMBLEM - speaker bezel109.95
A7110A711056-57BACK PLATE KIT - radio indicators w/chrome backplate (pr)28.50
 A711256-57BACK PLATE KIT - radio indicators, w/o chrome backplates (pr)22.35
A7136A713658BACK PLATE KIT - radio indicator back plates (pr)47.20
A7138A713859-60BACK PLATE KIT - radio indicator back plates (pr)14.95
A7157A715761-62BACK PLATE/BEZEL KIT - radio44.45
A7140A714059-60BEZEL - radio knob, chrome (ea)10.55
A7120A712060-62BEZEL - speaker46.75
A7101A710153-57BEZEL - speaker grille / chrome84.95
 A716458-62BLOCK-OFF PLATE - radio, pre-owned  CALL
 A043156-62BRACKET - capacitor #1911095 on generator (replacement)1.25
 A046156-62BRACKET - capacitor on coil, restored6.00
 A045856-62BRACKET - capacitor on voltage regulator, restored5.00
A7155A715553-57BRACKET - radio support18.65
A7122A712258-62BRACKET - radio support18.25
 A718456-57CAPACITOR - coil, GM #1929070, restored original w/Delco logo & part number 79.95
A7111A711156-57CAPACITOR & BRACKET - coil, GM #1929070, w/Delco logo & part number21.95
A7129A712958-62CAPACITOR - coil, GM #1947452, restored original w/Delco logo & part number39.95
 A713358-62CAPACITOR - coil, GM #1947452, w/Delco logo & part number, reproduction21.95
A7185A718558-62CAPACITOR - dash, rear of oil/battery gauge cluster GM #7270568/USED ORIGINAL135.00
 A717856-62CAPACITOR - generator, GM #1911095, restored original w/Delco logo & part number  CALL
A7113A711356-62CAPACITOR & BRACKET - generator, GM #1911095, w/Delco logo & part number21.95
A7179A717956-62CAPACITOR - voltage regulator, GM #1917580, restored original w/Delco logo & part number  CALL
 A711556-62CAPACITOR - voltage regulator, GM #1917580, w/Delco logo & part number 21.95
 A7111K56-57CAPACITOR & BRACKET SET/RADIO - w/brackets stamped w/GM #'s 1911095, 1917580 & 192907062.75
 A7133K58-62CAPACITOR & BRACKET SET/RADIO - w/brackets stamped w/GM #'s 1911095, 1917580 & 1947452 62.75
A7158A715858-60FACE KIT - radio (black letters)174.95
A7159A715958-60FACE KIT - radio (white letters)174.95
A7160A716061-62FACE KIT - radio174.95
A7108A710853-57GRILLE SET - speaker (3 pc)81.65
A7116A711658-59GRILLE/SCREEN - speaker, raised type39.00
A7118A711860-62GRILLE/SCREEN - speaker, flat type17.00
A4048A404853-62GROMMET - on firewall for ground wire, 1" single hole2.95
A7102A710255-60GROUND STRAP KIT - radio 32.95
A7107A710761-62GROUND STRAP KIT - radio32.95
A9981A998158-62GROUND WIRE - radio to valve cover14.00
 A991958-62HARNESS SET - radio to speaker20.00
A7132A713259-60KNOB & SPACERS - tone knob & volume spacer (pr)15.90
A7128A712861-62KNOB - radio (ea)17.95
A7126A712658-60KNOB - radio, RH (1958 1 req.) (1959-60 2 req.) (ea)19.65
A7161A716158KNOB - tone control18.75
A7142A714258KNOBS, BEZELS & BACKPLATE SET 89.00
A7144A714459-60KNOBS, BEZELS & BACKPLATE SET 79.00
A7176A717661-62KNOBS, BEZELS & BACKPLATE SET 95.00
A7131A713156-57KNOB SET - radio / 2pc43.50
A7150A715053LENS - radio face bezel40.50
A7151A715154-55LENS - radio face bezel40.50
A7152A715256-57LENS - radio face bezel30.95
A7153A715358-62LENS - radio face bezel29.00
A7162A716256-62NUT SET - radio shafts (pr)3.05
A7188A718860-62NUT SET - radio speaker bezel2.30
A1950A195058-62PANEL/CONSOLE - fiberglass around radio/heater control bezel149.95
A7166A716658RADIO W/KNOBS & BACKPLATES - wonderbar replica / see features795.00
A7167A716759-60RADIO W/KNOBS & BACKPLATES - wonderbar replica / see features795.00
A7168A716861-62RADIO W/KNOBS & BACKPLATES - wonderbar replica / see features795.00
A7114A711458-62SPEAKER & TRANSFORMER37.95
G0294G029458-62SPEAKER - 4" dual, pre-wired, replaces original unit completely for upgraded sound89.95
A0827A082756-62STATIC COLLECTOR - front wheels under grease cap (2 reg ea)28.00
A7181A718158-59STUD & NUT KIT - radio speaker installation14.05
A7163A716356-62WASHER SET - felt, radio knob (pr)3.85
 A714756-57WING KNOB SET - used, pr  CALL
